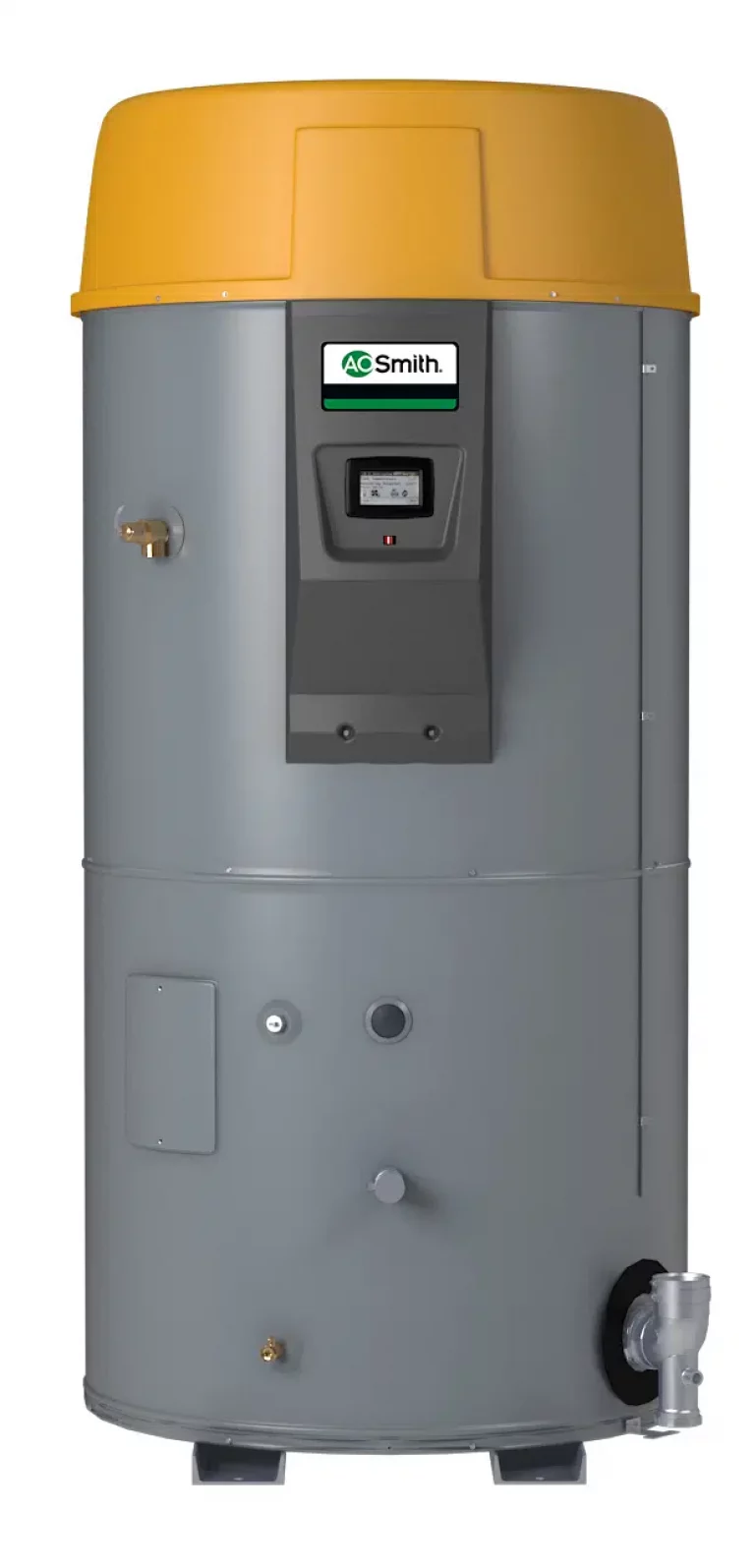

Cyclone™ LV BTHL
Modulating burner and large volume tank provide a high-efficiency, integrated solution.
Features
- Models are available from 150,000 to 499,900 BTU/h and deliver thermal efficiencies up to 96%
- Large volume 220 and 250 gallon storage capacities
- ENERGY STAR® qualified (all models except BTHL-500A)
- Advanced control system with colour touchscreen display and iCOMMTM remote monitoring capabilities
- Submerged combustion chamber with helical heat exchanger coil
- Intelligent Demand Response (IDR) senses large water draws and adjusts temperature
- Receive leak detection alerts with optional leak detection kit
- 5 year limited tank and 1 year limited parts warranty
Technical documents
- Spec Sheet
- Spec Sheet (iCOMMTM)
- Spec Sheet (Building Management System BACnet and Modbus Interface)
- Installation Manual (150-250 Models)
- Installation Manual (300-500 Models)
- Installation Manual (Building Management System BACnet and Modbus Interface)
- Parts List (150-250 Models)
- Parts List (300-500 Models)
- Wiring Diagram (150 – 250 Models)
- Wiring Diagram (300 – 500 Models)
- Revit Models
- 3-Part Spec
